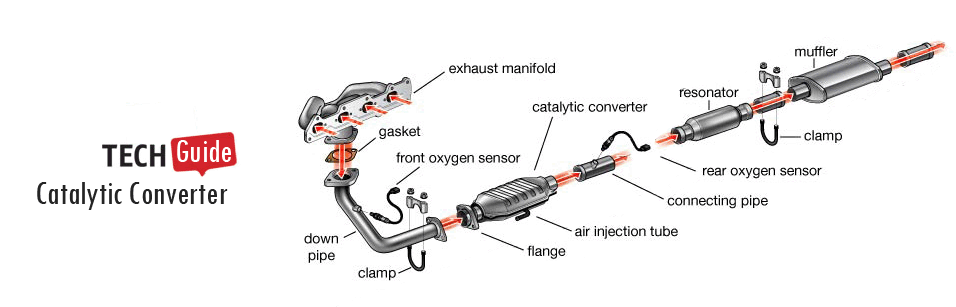

Exhaust Distribution
Exhaust Distribution
The purpose of any catalytic converter is to reduce harmful emissions from the exhaust of a "properly tuned" combustion engine. It accomplishes this through a combination of heat and a precious metal catalyst that causes the harmful emissions to either oxidize or reduce to safe elements in the exhaust flow. If the engine is out of tune and not calibrated to OEM specs, the catalytic converter's efficiency is greatly diminished and could lead to a converter failure.


The precious metal catalyst is bound to an extruded ceramic honeycomb substrate. The ceramic has hundreds of flow channels that allow the exhaust gasses to come in contact with a maximum amount of surface area where the catalyst reaction takes place. The catalyst must come in direct contact with the exhaust gasses for the reaction to take place.

If the ceramic inside your converter becomes clogged or coated with carbon, lead or oil, then the converter's efficiency is greatly reduced.

There are three basic types of automotive catalytic converters: Two-Way, Three-Way and Three-Way+Air. Each type uses a slightly different method and chemistry to reduce the harmful elements in exhaust emissions. Early model converters used a pelletized catalyst, but most modern converters are now designed with a free-flowing honeycomb ceramic catalyst. The type of converter required on a particular vehicle varies with model year, engine size and vehicle weight. Some vehicles use more than one type of converter to meet emission reduction standards.





Pre-Converter and Main Converter Each of the three types of converters mentioned at left have a common need in order to function properly. Each needs to reach a minimum operating temperature before any emission reduction or oxidation takes place. This warm-up period immediately after a vehicle is started is when the catalytic converter is least efficient and the vehicle expels the most pollutants. Some vehicles employ a pre-converter in the exhaust system immediately after the manifold to help during this warm-up period. The pre-converter's small size and proximity to the engine allow it to heat up and start functioning in less time than the main converter. It also pre-heats the exhaust gasses and helps the main converter reach operating temperature sooner.



Two-Way Oxidation Converter Two-Way converter, used on cars between 1975-1980, oxidizes unburned harmful hydrocarbons and carbon monoxide along with secondary oxygen into water and carbon dioxide. HC, CO, O2 OXIDIZE TO H20 and CO2



Three-Way Reduction/Oxidation A Three-Way converter is a triple purpose converter. It reduces nitrous oxides into nitrogen and, like the two-way converter, it oxidizes unburned harmful hydrocarbons and turns carbon monoxide into water and carbon dioxide. NOx REDUCES TO N2
HC, CO OXIDIZES TO H20 and CO2



Three-Way+Air
Reduction/Oxidation Converter
A Three-Way+Air converter performs the same function as the Three-Way converter: It oxidizes and reduces. The difference is the addition of secondary air between the two internal catalyst substrates that improves the oxidation capabilities of the converter. The secondary air is pumped into the middle of the converter between the two separate catalyst substrates. The front performs the reduction and the back ceramic performs the oxidation. It's like having two converters in one. NOx REDUCES TO N2
